- Intelligent PoE. - Red port supports 90W IEEE802.3bt. - Web management with friendly interface and easy operation. - 250 m long distance PoE transmission. - PoE watchdog. - Large-capacity data cache (4Mbit) for real-time transmission and smooth video. - All gigabit port design.

-The parameters and datasheets below can only be applied to V2.0 (version 2.0) -Intelligent PoE -Red port supports 90W IEEE802.3bt -Web management with friendly interface and easy operation -250 m long distance PoE transmission -PoE watchdog -Plug and play

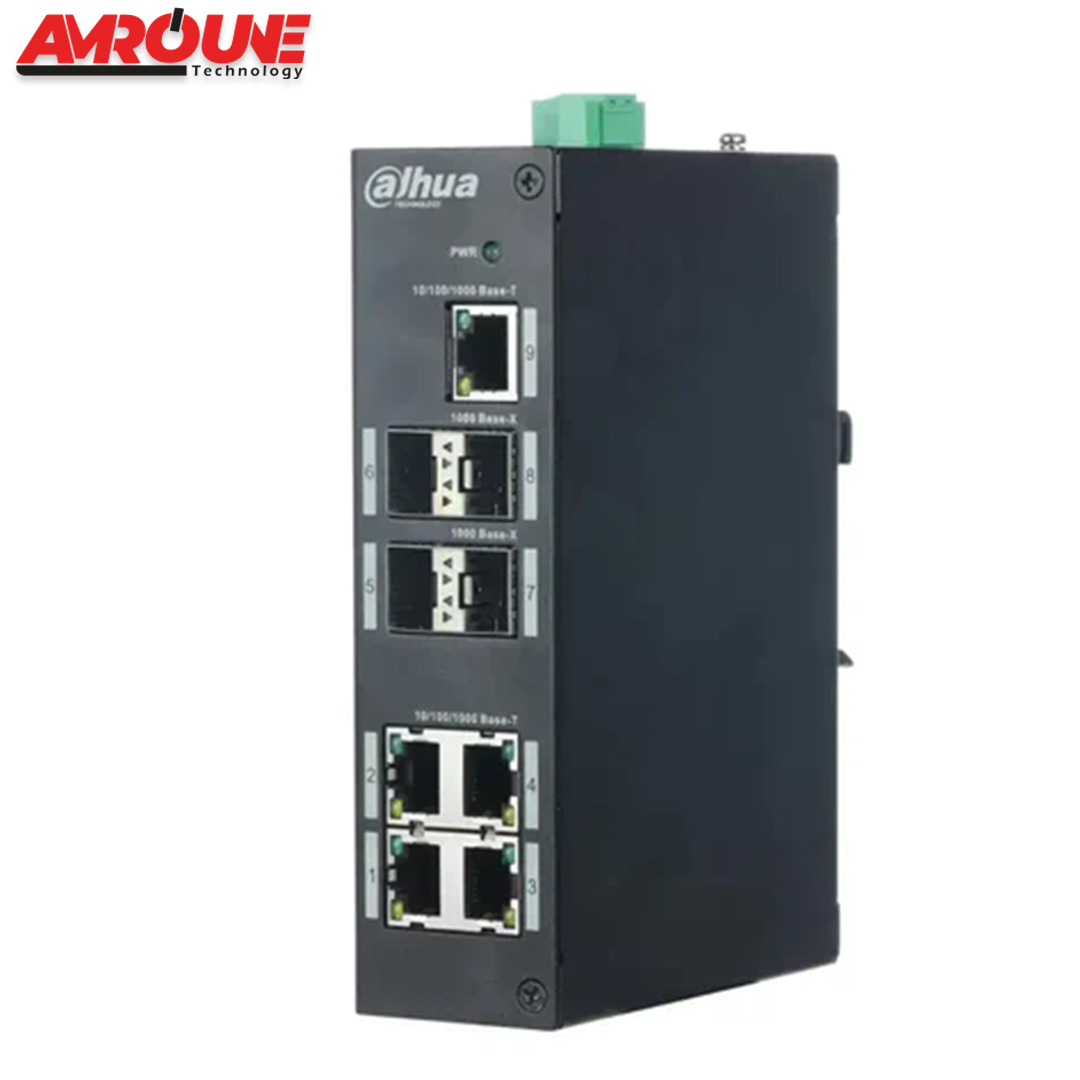

Layer 2 Hardened Ethernet switch MAC auto study and aging, MAC address list capacity is 4K Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards Adopts metal structure Industrial wide working temperature design: -30°C~+65°C High protection grade, supports common mode 4KV, differential mode 2KV Supports dual power backup

The parameters and datasheets below can only be applied to V2.0 (version 2.0) Intelligent PoE 8-pin assignment PoE power supply Long distance PoE PoE watchdog BT 90W All-giga ports Wide working temperature

- Layer 2 Hardened Ethernet switch -MAC auto study and aging, MAC address list capacity is 4K - Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards - Adopts metal structure - Industrial wide working temperature design: -30°C~+65°C - High protection grade, supports common mode 4KV, differential mode 2KV - Supports dual power backup

-100 Mbps PoE ports and gigabit uplink ports. -The red port meets the IEEE 802.3bt standard. -Power supply supports up to 90 W. -PoE watchdog monitors the status of terminals in real-time. -Supports 250 m long-distance power supply. -Supports the power management policy. -8-pin PoE offers better compatibility and reduces cable loss. -Durable full-metal housing provides great heat dissipation.

- Compliant IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x standards - Supports IEEE802.3af, IEEE802.3at, Hi-PoE standards - Supports normal working mode, port isolation (VLAN) mode, monitoring mode, network extend mode. -Supports Store-and-Forward - 16*10/100Mbps ports, 1*Gigabit Combo port, support port auto flipping (Auto MDI / MDIX) Port 1-2 support the maximum power of 60W, PoE output total power up to 135W - Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode -4K entry MAC address table with auto-learning and auto-aging -LED indicators for monitoring power, link and activity

- Layer-two Unmanaged PoE Switch - Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X standards - MAC auto study and aging, MAC address list capacity is 8K - Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 and 2 support Hi-PoE 60W power supply - Adopts metal structure - High protection grade, supports common mode 4KV, differential mode 2KV - Supports DC 48V-DC 57V power supply and dual power backup - Supports -30°C~65°C operating temperature - Supports two types of transmission modes, which are Default and Extend.Default mode is standard Ethernet mode with transmission bandwidth of 100 Mbps and supports transmission distance up to 100M via CAT6.Extend mode is long distance transmission mode with transmission bandwidth of 10 Mbps and supports transmission distance up to 250M via CAT6. This function only supports port1-4

100 Mbps PoE ports and gigabit uplink ports. The red port meets the IEEE 802.3bt standard. Power supply supports up to 90 W. PoE watchdog monitors the status of terminals in real-time. Supports 250 m long-distance power supply. Supports the power management policy. 8-pin PoE offers better compatibility and reduces cable loss. Durable full-metal housing provides great heat dissipation.

Layer two Hardened PoE switch Supports PoE power management MAC auto learning and aging, MAC address capacity is 8K Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply Supports IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards Wide working temperature design: -30°C~ 65°C Supports dual power backup

24-Port Gigabit Switch (Unmanaged) > Layer 2 unmanaged access switch > All gigabit Ethernet ports > Lightning protection > Plug and play > Adopts metal enclosure > Good heat dissipation
